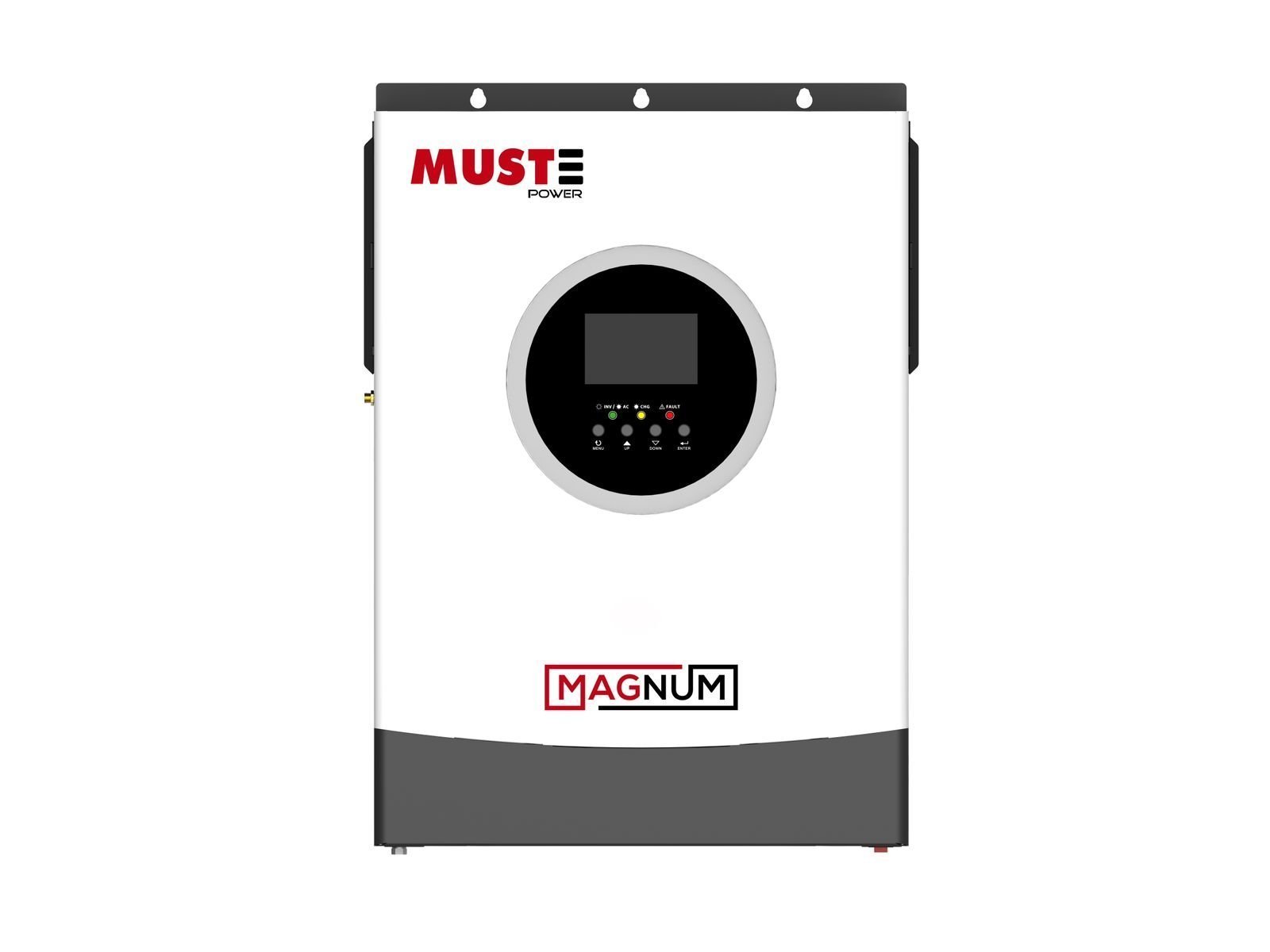

MAGNUM DUAL PV 6200 5.5KW

Original price was: 150.000 ₨.Current price is: 132.000 ₨.

Enter required details

Inverter Type *

Capacity (kW) *

Phase Type *

Battery Support

HYBRID SOLAR INVERTER

Magnum Series

5.5KW | Dual output | WiFi

Magnum Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. Magnum Series can run without battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy. 3.5-5.5KW | Dual output | WiFi
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ Combining solar system, AC utility, and battery power source to supply
continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support USB, RS485, CAN monitoring function
■ PV/ AC activation function
■ BMS communication function (CAN Port)
■ Dual output for smart load management

Contact via Call

Submit Enquiry

Get In Touch

Please fill in the form below – our experts will contact you within 24 hours.

Free Shipping

Free shipping on all orders over 10,000.

Home Visit

Free home site visit for consultation.

Need help?

Need help? 24/7 dedicated support.

Fast Delivery|Free Home Visit|20% Off Customer Favourites|Secure Payment

MODEL	MP-MAGNUM-DUAL 3.5KW	MP-MAGNUM-DUAL 5.5KW
Nominal Battery System Voltage	24VDC	48VDC
INVERTER OUTPUT
Rated Power (Main+Second Load)	3500VA/3500W	5500VA/5500W
Surge Power	7000W	11000W
Waveform	Pure sine wave
AC Voltage Regulation (Batt.Mode)	230VAC±5%(Setting)
	90~93%
Transfer Time	10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage	230VAC±5%
Selectable Voltage Range	170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range	50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage	24VDC	48VDC
Floating Charge Voltage	27.4VDC	54.8VDC
Overcharge Protection	30VDC	60VDC
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Circuit Voltage	450VDC	450VDC
Maximum PV Input Current	18A	28A
Charging Algorithm	3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power	4200W	6200W
PV Array MPPT Voltage Range(Typ.)	60~360VDC
Maximum Solar Charge Current	100A
Maximum AC Charge Current	60A	100A
Maximum Charge Current	100A
MECHANICAL SPECIFICATIONS
Machine Dimension (WHD)	367318122.5mm	454318122.5mm
Package Dimension (WHD)	459410200mm	544.5410200mm
N.W (kg)	7.2kg	9.0kg
G.W (kg)	8.2kg	10.5kg
OTHER
Humidity	5% to 95% Relative humidity (Non-condensing)
Operating Temperature	0°C~50°C
Storage Temperature	-15°C~60°C
