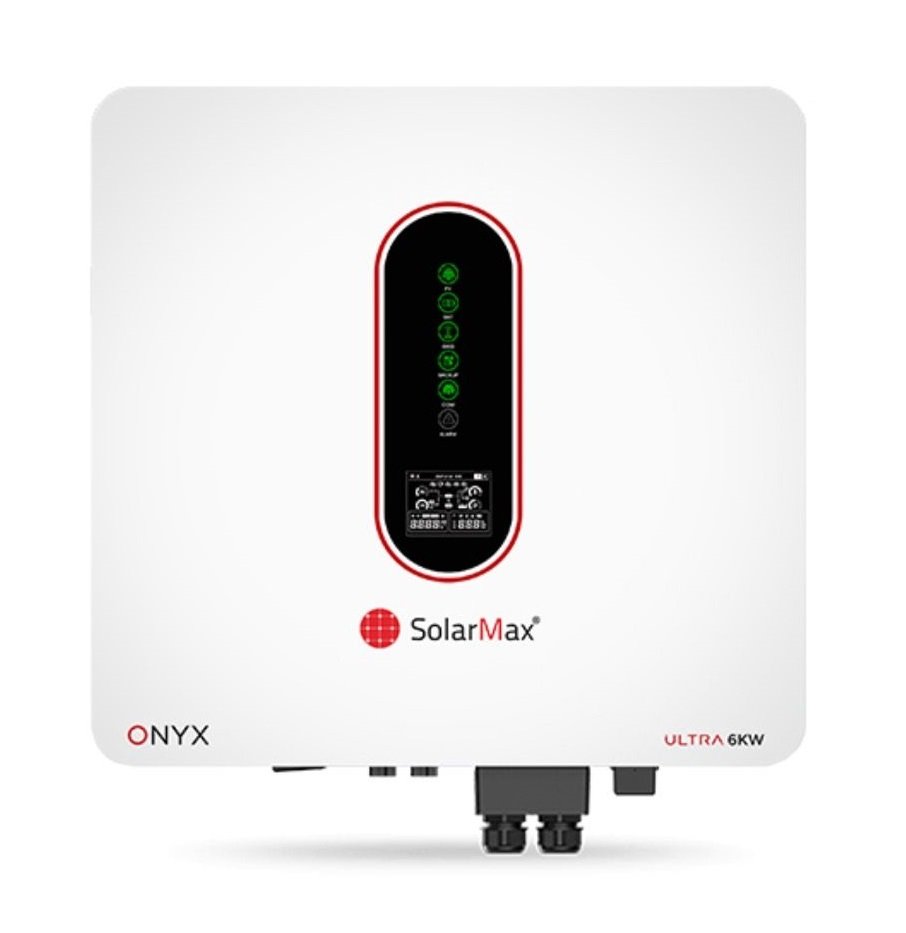

| MODEL | SM-ONYX-UL-6KW |
|---|---|
| INPUT (PV) | |
| MAX PV Power (W) | 9000W |
| Max PV Voltage (V) | 550VDC |
| MPPT Voltage Range (V) | 70-520VDC |
| No. of MPPT Trackers | 2 |
| INPUT (BATTERY) | |
| Nominal Battery Voltage (V) | 48VDC |
| Max. Charge/Discharge Current (A) | 120A / 120A |
| OUTPUT (GRID) | |
| Nominal AC Output Power (W) | 6000W DUAL |
| Rated AC Voltage (V) | 220VAC |
| GENERAL & EFFICIENCY | |
| Max. Efficiency (PV to AC) | >97.3% |
| Ingress Protection Degree | IP65 |
| Weight | 25Kg |
| Dimensions (W*H*D) | 515mm*450mm*175mm |
| Warranty (years) | 5 Years |
Starting from
Original price was: 105,000 ₨.75,000 ₨Current price is: 75,000 ₨.
