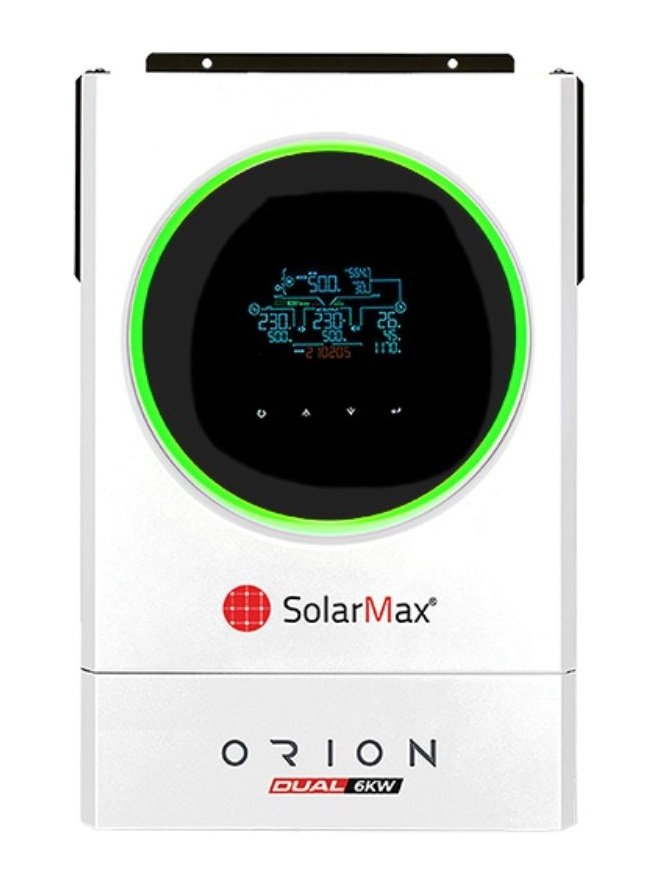

| MODEL | SM-ORION-DUAL 6KW |
|---|---|
| PHASE | 1-phase in / 1-phase out |
| MAXIMUM PV INPUT POWER | 7000W |
| RATED OUTPUT POWER | 6000W DUAL |
| MAXIMUM CHARGING POWER | 6000W |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| MPPT Voltage Range | 120 VDC ~ 450 VDC |
| Number of MPP Trackers / Max Input Current | 1 / 27 A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Efficiency (DC/AC) | 96% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 140 x 295 x 468 |
| Net Weight (kgs) | 12 |
| INTERFACE | |
| Parallel Function | Yes, 9 units |
| Communication Port | USB/RS232/RS485/WiFi/Dry-contact |
Starting from
Original price was: 105,000 ₨.75,000 ₨Current price is: 75,000 ₨.
